GLASS PAR56 LED SWIMMING POOL LIGHT RGB IP68 UNDERWATER LIGHT

  • GLASS PAR56 LED SWIMMING POOL LIGHT RGB IP68 UNDERWATER LIGHT
Name:GLASS PAR56 LED SWIMMING POOL LIGHT RGB IP68 UNDERWATER LIGHT
Model No:PAR56TG-8W/12W/18W/24W/35W
Size:178x114mm

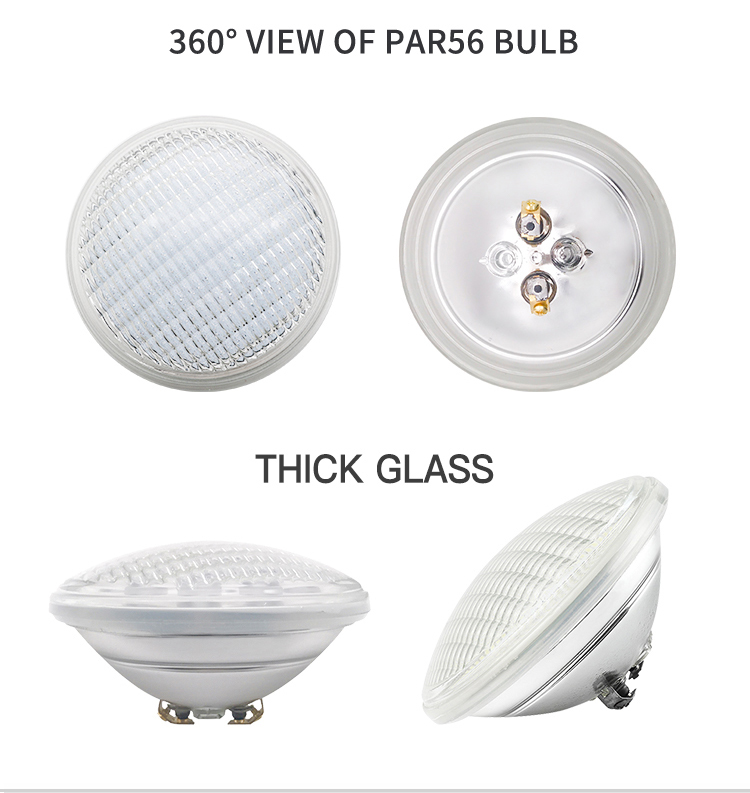

Material:Thicker glass
LED qty:252pc 333pc 441pcs
LED type:2835SMD, 3014SMD
LED Brand:Epistar
LED Power:8W 12W 18W 24W 35W
LED Color:Single color, RGB Color
Single Color:Red,Yellow, Blue, Green, Cool white, Neutral white, Warm white
Waterproof Grade:IP68
Beam angle:120degree
RGB DC12V Model:External Control, WiFi Control, DMX512 Control
RGB AC12V Model:Inner Control, Switch Control, Remote Control

Product Description



8W,12W,18W,24W,30W,35WAC12V IP68 LED PAR56 light
To replace traditional PAR56 halogen bulb directly
Single color, RGB Color changed synchronously

Features:

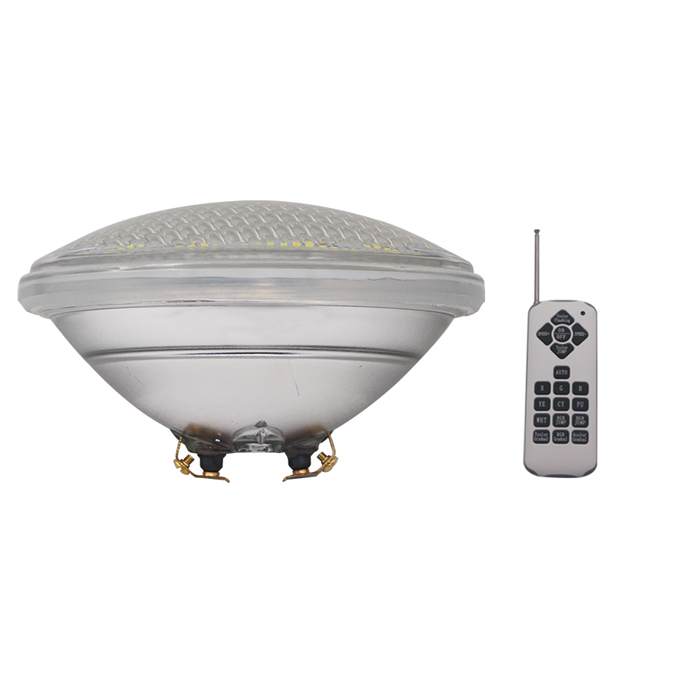

1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.

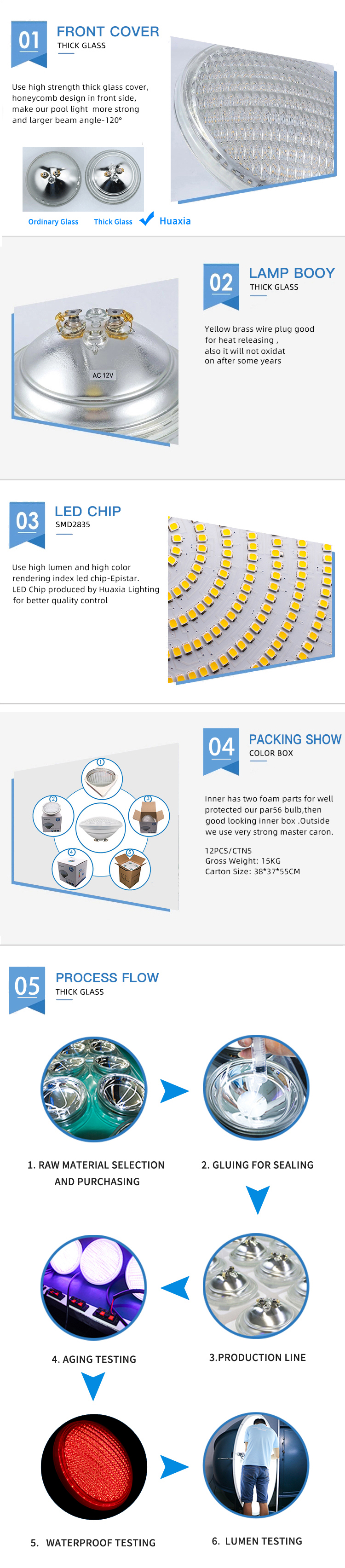

2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6.The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7.The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.


Specification:
Material: Thicker glass
Voltage: AC12-24V
Power:18/24/35Watt
LED Type:SMD3014/2835
LED Qty:252/333/441pcs
LED Brand: Epistar
Size:178*114mm
Color:Warm white/white/RGB
Warranty: Two Year
Life Span: 50,000hours
Gross Weight: 1KG/PCS

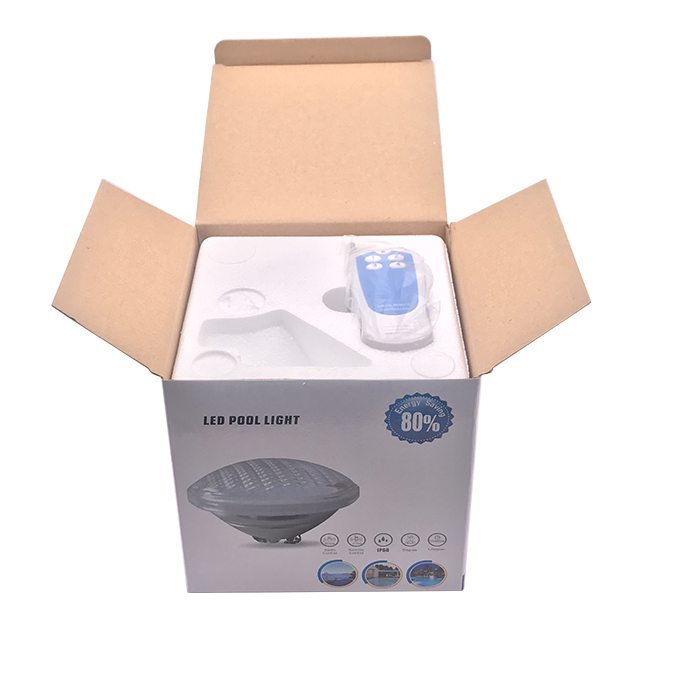

Packing: 12PCS/CTNS


Item No.PowerLED qtyLED typeSizeLED ColorVoltageMaterialIP Grade
PAR56TG-8W8W108pcsSMD3014/2835178*114mmWarm white
White
Red
Yellow
Blue
Green
RGB
AC/DC 12VThicker glassIP68
PAR56TG-12W12W144pcsSMD3014/2835
PAR56TG-18W18W252pcsSMD3014/2835
PAR56TG-24W24W333pcsSMD3014/2835
PAR56TG-30W30W144pcsSMD5050
PAR56TG-35W35W441pcsSMD3014/2835


Voltage Details:
Single color: R/Y/B/G/CW/WW         (AC/DC12V)
RGB on/off controlled                   (AC12V)
DMX512 Controlled 4wires              (DC12v)
External controlled 4wires               (DC12V)
RGB 2wires PLC controlled             (AC12V)



3kind of material optional:






Colors changing details: (Can be customized)
for RGB on/off controlled with memory (totally 16models:
1. White (Red+Green+Blue)
2.RED
3. Green
4.Blue
5. Skyblue(Green+blue)
6. Orange(Red+green)
7.Purple(red+blue)
8. static Blue color, Red gradually changing
9. static Green, Red gradually changing
10. static Blue, Green gradually changing
11. static white(Cool white)
12.G→B→GB→RG→RB→RGB→R Slow gradually changing in circulation
13.R→G→B→GB→RG→RB→RGB→RG→G→GB→B→RB→R gradually changing in circulation
14.R→G→B Jumpy changing from fast to Slow→R→(R→B→G) Jumpy changing from fast to Slow→(R→RB→RG→G→GB→RB→RG→GB)fast  gradually changing,then changed circulation
15,RG→G→GB→B→RB→R  Slow gradually changing in circulation
16. Program 14 +13 in Slow gradually changing in circulation



Applications:

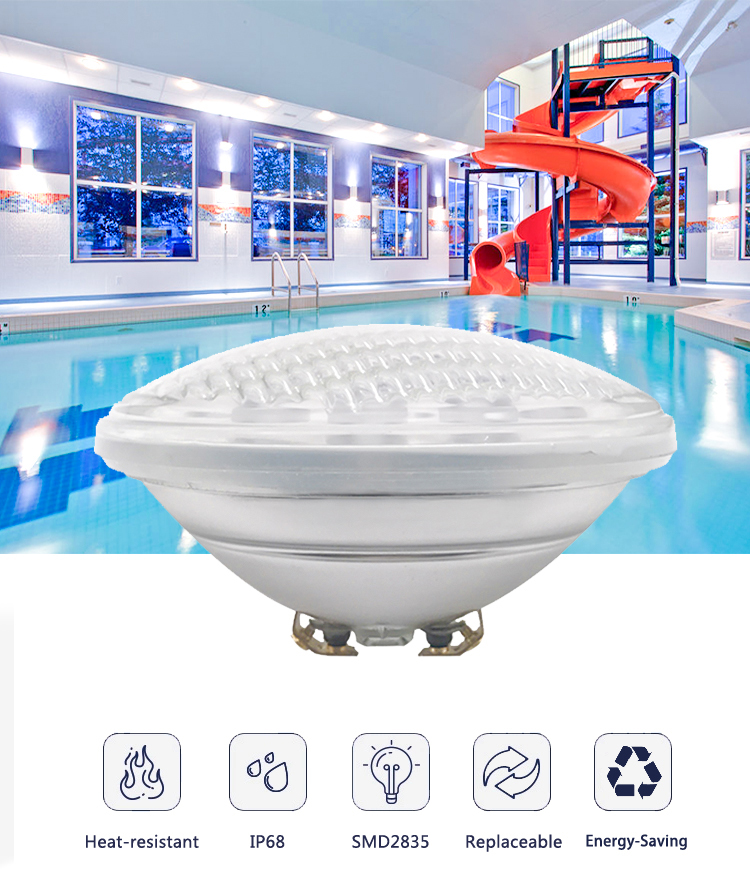

It is used in swimming pools, fountains, scenic ponds' illumination and decoration.


Cautions:

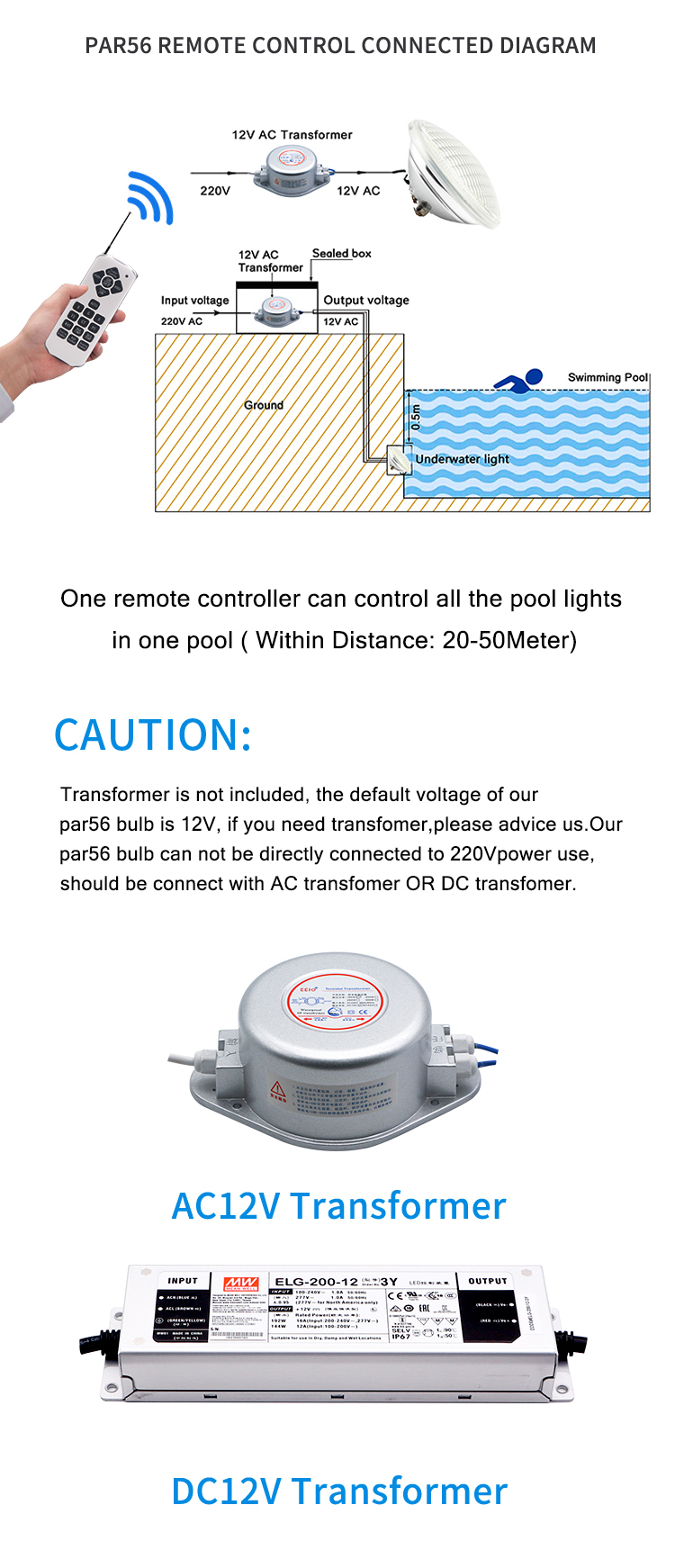

1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused dis-function. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test
