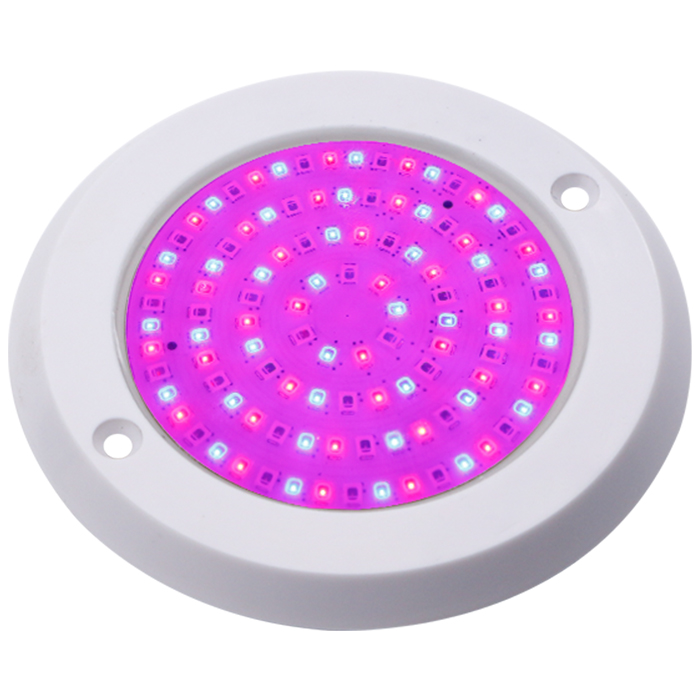

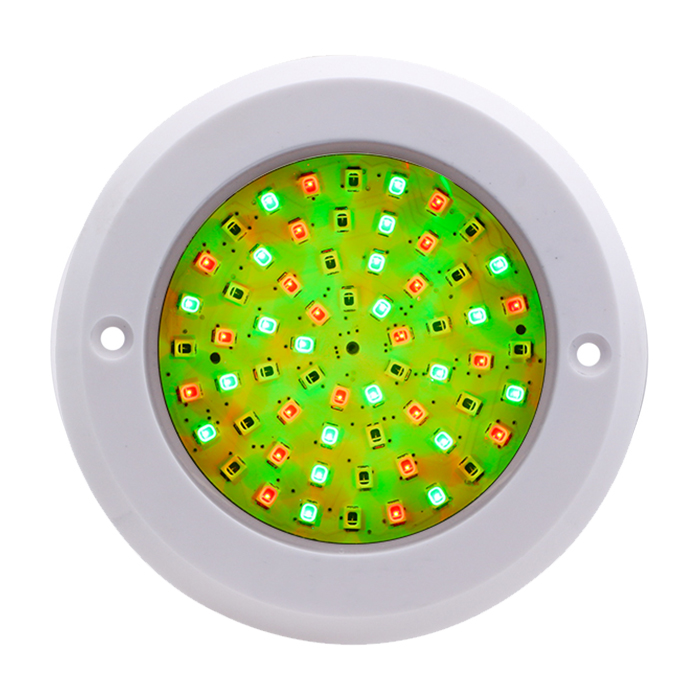

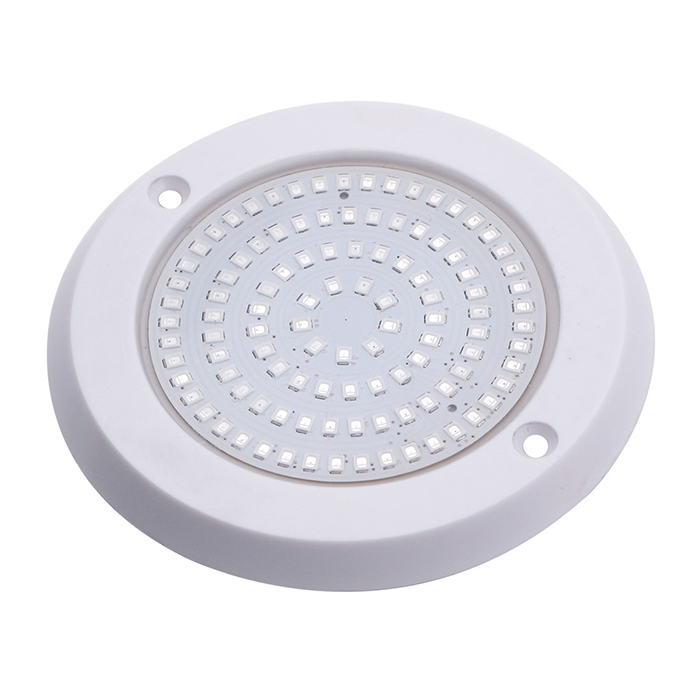

110x22mm super thin PC resin filled led pool light

  • 110x22mm super thin PC resin filled led pool light
Name:110x22mm super thin PC resin filled led pool light
Model No:FG-PL110-PC-6W
Size:110x10mm
Material:PC
LED qty:63pcs
LED type:2835SMD
LED Brand:Epistar
LED Color:Single color, RGB Color
LED Power:6W
Single Color:Red,Yellow, Blue, Green, Cool white, Neutral white, Warm white
Waterproof Grade:IP68
Beam angle:120degree
RGB DC12V Model:External Control, WiFi Control, DMX512 Control
RGB AC12V Model:Inner Control, Switch Control, Remote Control

Product Description




Specification:

Model NoLED QtyLED Power VoltageLED ColorBeam
    angle
MaterialSize
FG-PL110-PC-6W
 FG-PL110-PC-6W-AC
63pc
    SMD2835
6WAC/DC12VWarm White White              Cool White Yellow              Red               Green               Blue
    RGB
 120°PC110*10MM
    110*22MM
FG-PL160-PC-12W
 FG-PL160-PC-12W-AC
144pc
    SMD2835
12W160*10MM
    160*22MM
FG-PL160-PC-18W
 FG-PL160-PC-18W-AC
252pc
    SMD2835
18W
FG-PL230-PC-18W
 FG-PL230-PC-18W-AC
252pcs
    SMD2835
18W230*10MM
    230*22MM
FG-PL230-PC-24W
 FG-PL230-PC-24W-AC

333pcs

 SMD2835

24W
FG-PL230-PC-35W
  FG-PL230-PC-35W-AC
441pcs
    SMD2835
35W




Installation:
