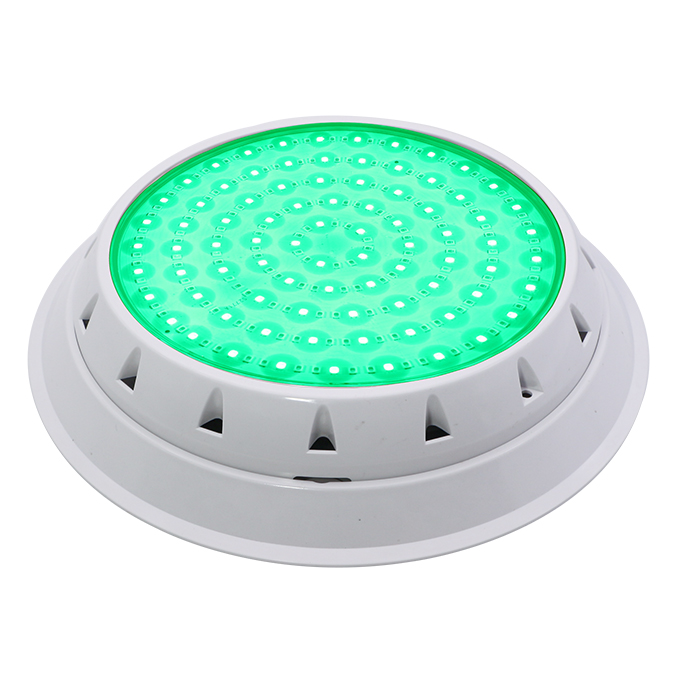

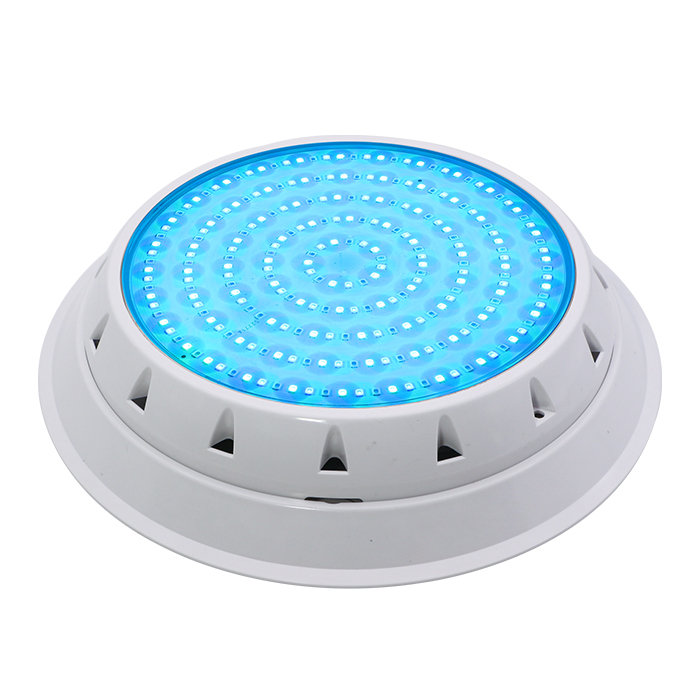

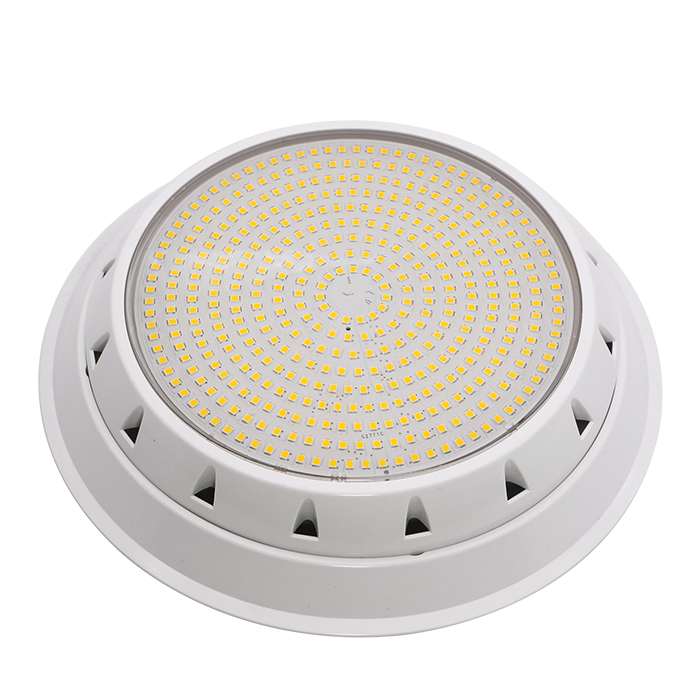

245x50mm LED Surface Mounted Pool light with universal bracket

  • 245x50mm LED Surface Mounted Pool light with universal bracket
Name:245x50mm LED Surface Mounted Pool light with universal bracket
Model No:FG-UWL245-252P/333P/441P/531P/630P
Size:245x50mm
Material:PC
LED qty:252pcs 333pcs 444pcs 531pcs 630pcs
LED type:2835SMD
LED Brand:Epistar
LED Color:Single color, RGB Color
LED Power:18W 24W 35W
Single Color:Red,Yellow, Blue, Green, Cool white, Neutral white, Warm white
Waterproof Grade:IP68
Beam angle:120degree
RGB DC12V Model:External Control, WiFi Control, DMX512 Control
RGB AC12V Model:Inner Control, Switch Control, Remote Control

Product Description

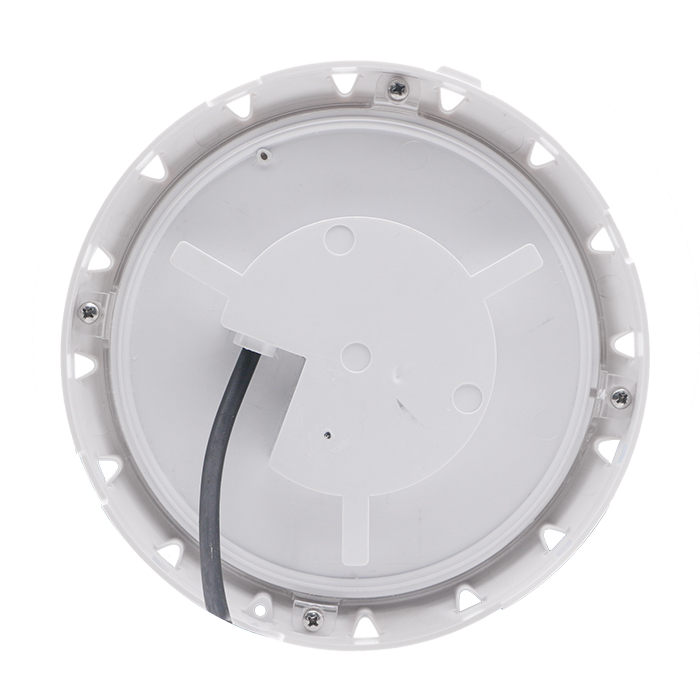

LED Surface Mounted Pool light with universal bracket which is easily to replace the previous lights



1. Material: PC

2. Voltage: AC/DC 12V-24V
3. Power: 18W, 24W,30W,35W,42W

4. LED QTY: 252PCS,331PCS,441PCS,531pcs,630pcs

5. LED Brand: Epistar

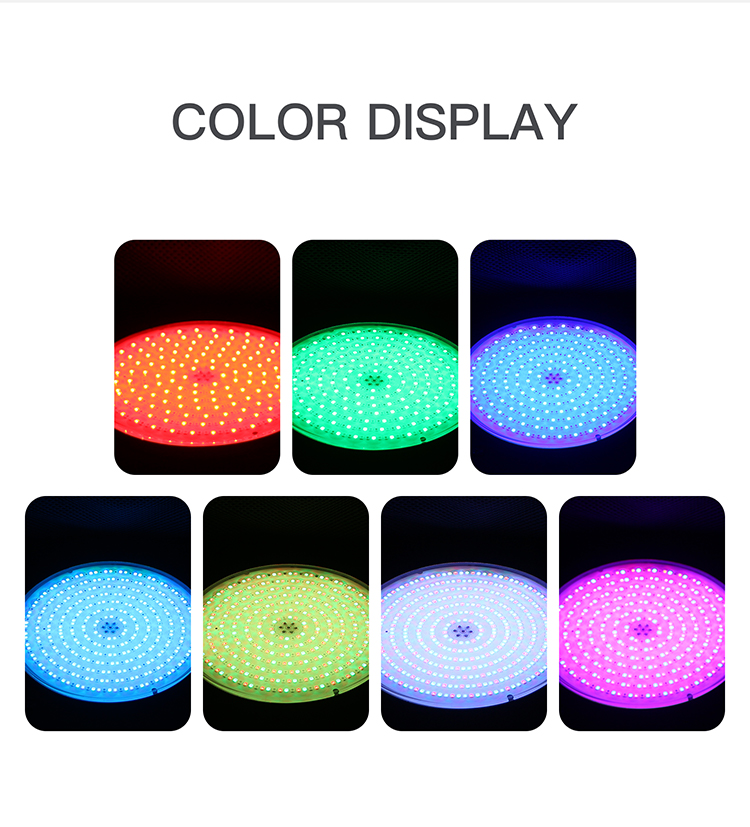

6. Color: RGB/Red/Yellow/Blue/Green/Cool white/Warm White

7. Warranty: 2years

8. Size: 245*50mm





Voltage details:
Single color: R/Y/B/G/CW/WW                                             (AC/DC12V)
RGB Remote controlled (Inner, on/off and remote in 1 lamp)     (AC12V)
RGB on/off controlled  2wire                                                 (AC12V)
DMX512 Controlled 4wires                                                    (DC12v)
External controlled 4wires                                                     (DC12V)
RGB 2wires PLC controlled                                                   (AC12V)



Product
    Code
LED Qty             (PCS)Input
    Power
Input
    Voltage
Emitting ColorBeam
    angle
MaterialDimension    (MM)
FG-UWL245-252P252
    SMD2835
18WAC/DC12V
    AC/DC24V

Warm   White; White;              Cool White;

Yellow ;

 Red ;              Green ;              Blue ;

    RGB
120° PC245*50MM
FG-UWL245-333P333
    SMD2835
24W
FG-UWL245-441P441
    SMD2835
30W
FG-UWL245-531P531
    SMD2835
35W
FG-UWL245-630P630
    SMD2835
42W


图层 4.jpg

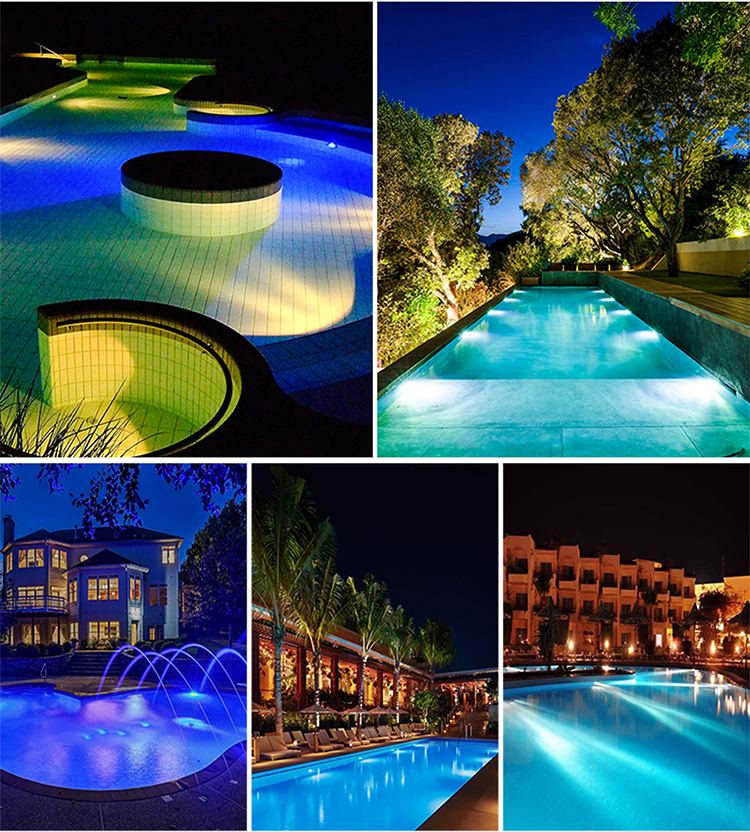

Application:
1.Swimming Pool/ Underwater/ Fountain Use
2.The RGB led underwater light are suitable for all decoration use, such as in swimming pool, underwater, fountain use etc.
3.Underground/ Stadium/ Square/ Park
4.The ideal RGB led underwater light for anywhere that needs good effect of brightness lighting for outside use, such as underground, square, park etc.


图层 5.jpg
