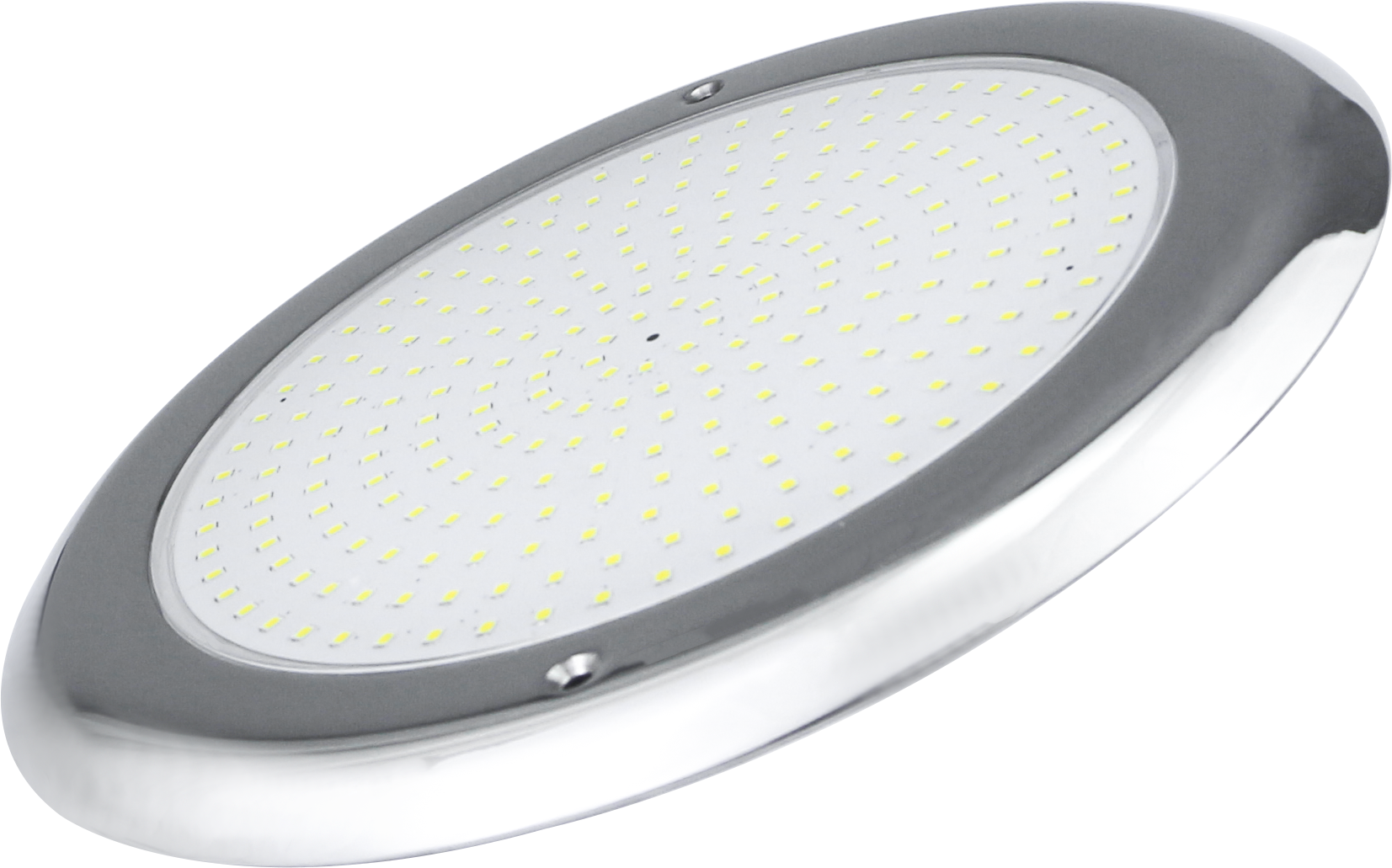

230x10mm 18W 24W 35W Slim LED Pool light

  • 230x10mm 18W 24W 35W Slim LED Pool light
Name:230x10mm 18W 24W 35W Slim LED Pool light
Model No.:FG-PL230-316SS-02

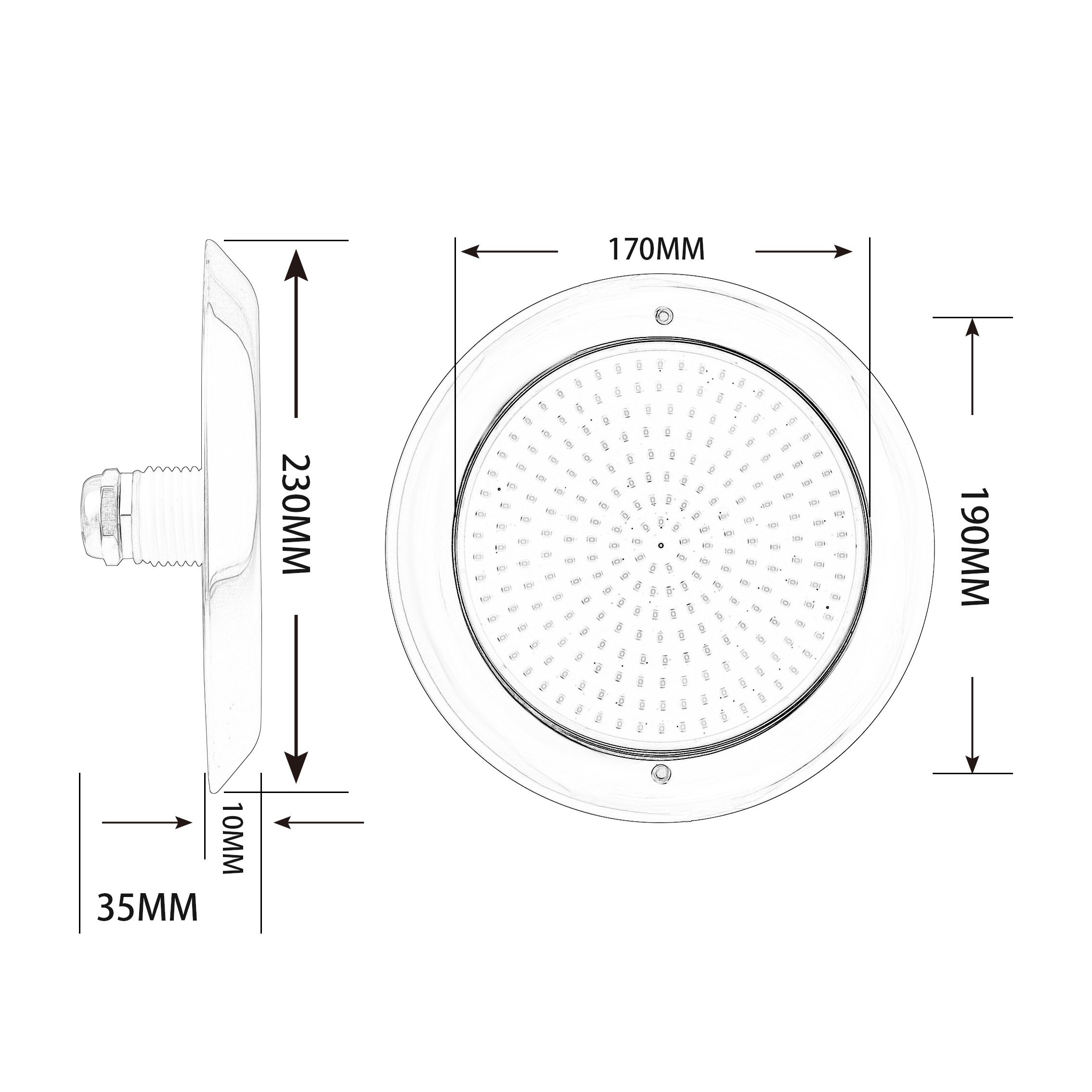

Size:230x10mm
Voltage:DC12V
LED qty:252/333/441pc 2835SMD
LED Color:RGB, RGBW,Red, Yellow, Blue, Green, Cool white, Warm white
LED power:18W/24W/35W
LED Brand:Epistar
Beam angle:120degree
Regular cable length:2meters
Waterproof Grade:IP68

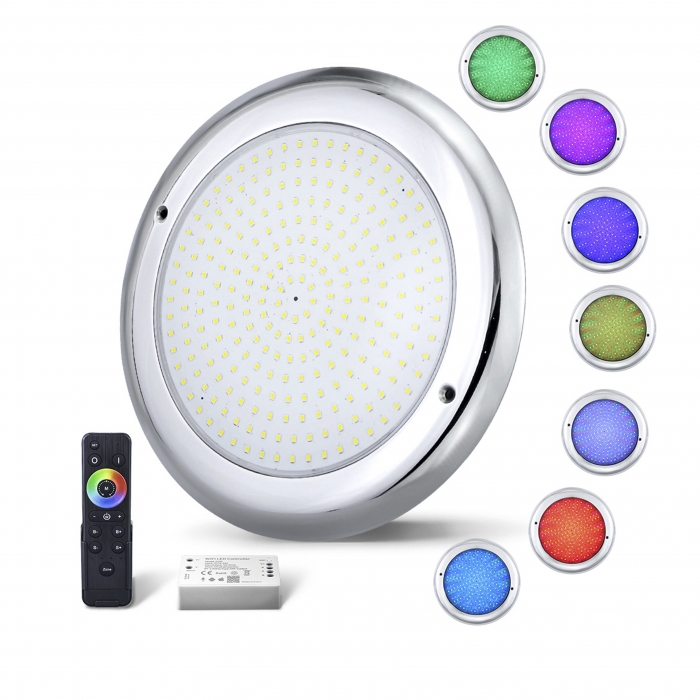

RGB control method:WiFI Control, External Control, DMX512 Control

Product Description

COMPETITIVE ADVANTAGE

1.New model with fashion design

2.Super Slim, only 10mm

3.316 Stainless Steel, no rusty

4.Resin filled bulb,100% waterproof

5.Easy Installation


SPECIFICATION

Model No

LED Qty

 (PCS)

Input

Power

Voltage

LED

Color

Material

Dimension

(MM)

FG-PL110-316SS-02

63pcs

 SMD2835

 6W







 DC12V




WARM WHITE

WHITE

COOL WHITE

YELLOW

RED

GREEN

BLUE

RGB

         RGBW






316SS+

    PC

 110*10MM

FG-PL160-316SS-02

108pcs

 SMD2835

10W 160*10MM
FG-PL230-316SS-02-18W

252pcs

 SMD2835

 18W



230*10MM

FG-PL230-316SS-02-24W

333pcs

 SMD2835

24W
FG-PL230-316SS-02-35W

441pcs

 SMD2835

35W
FG-PL280-316SS-02-18W

252pcs

 SMD2835

18W



 280*10MM

FG-PL280-316SS-02-24W

333pcs

 SMD2835

24W
FG-PL280-316SS-02-35W

441pcs

 SMD2835

35W


图层 6.jpg

图层 3.jpg

图层 7.jpg

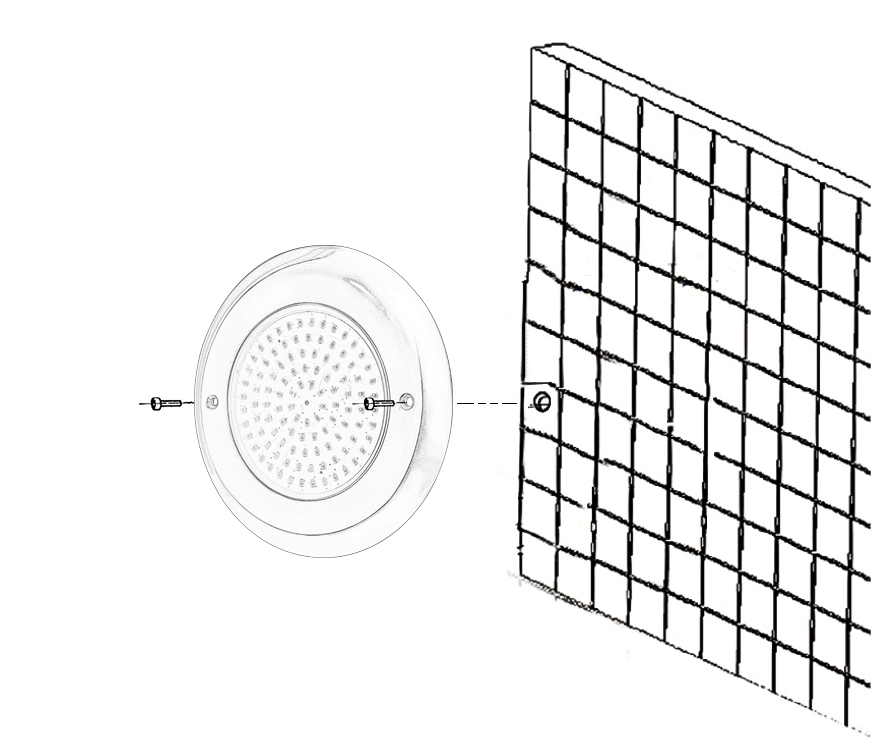

Installation:
