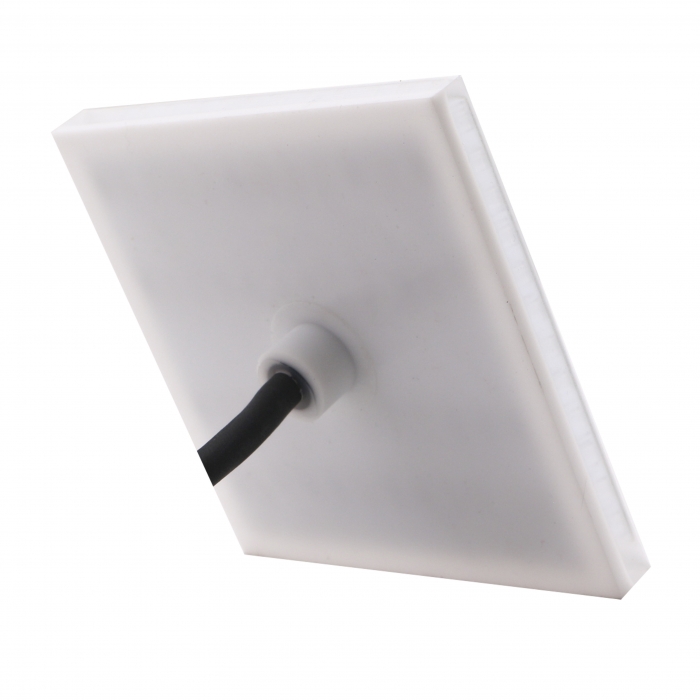

Square 100x100mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light

  • Square 100x100mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Name:Square 100x100mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Model No.:FG-SP100-10W/12W

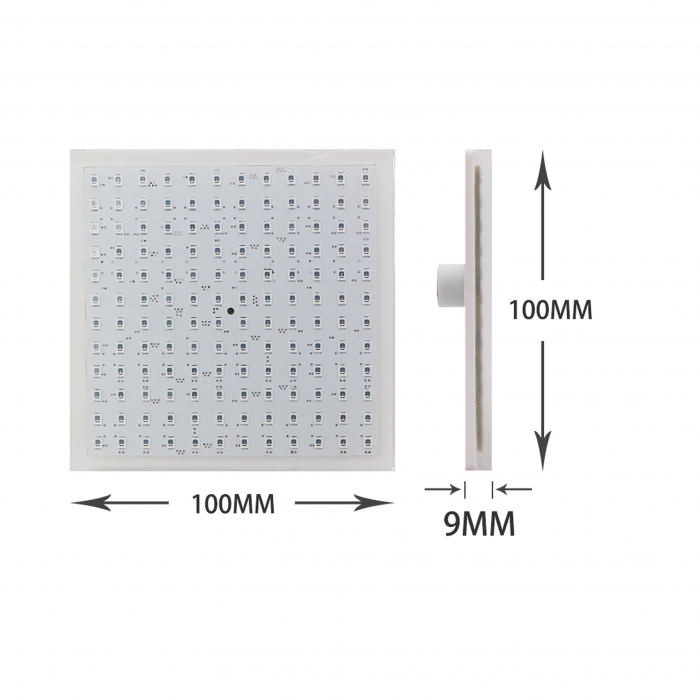

Size:100x100x10mm
Voltage:DC12V
Material:Soft resin filled
LED Col:RGB,Red, Yellow, Blue, Green, Cool white, Warm white

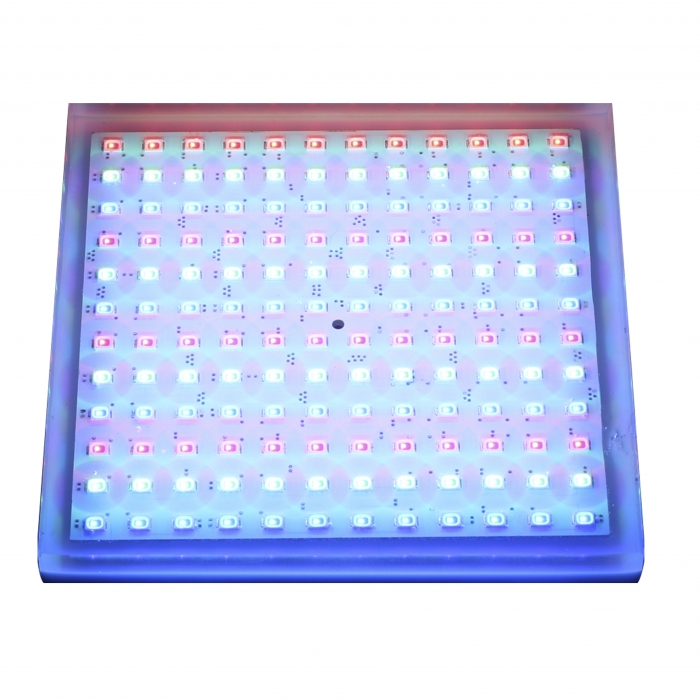

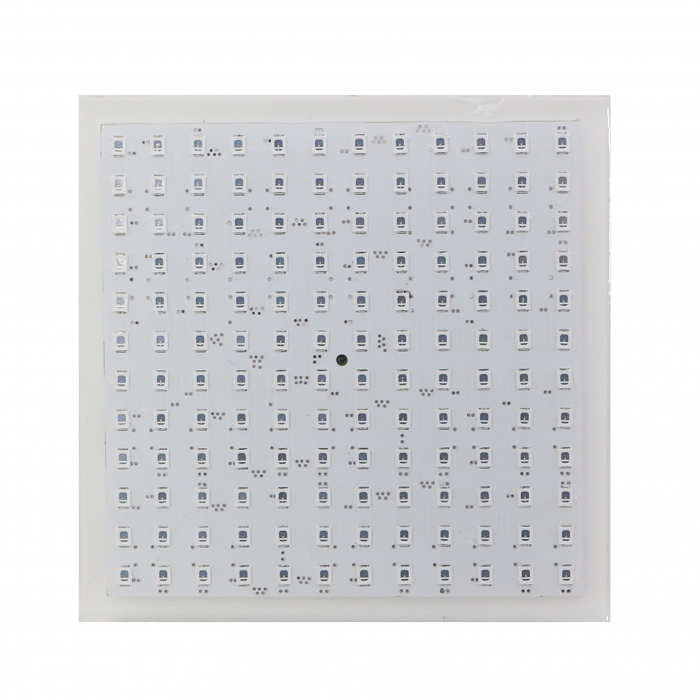

LED qty:108pcs 144pcs
LED power:10W 12W
LED Brand:Epistar
Beam angle:120degree
Regular cable length:2meters
Waterproof Grade:IP68
RGB control DC12V:WiFI Control, External Control, DMX512 Control

Product Description






ModelProduct
    Code		LED Qty             (PCS)Input
    Power		Input
    Voltage		Emitting ColorBeam
    angle		MaterialDimension    (MM)
Round shapeFG-PL100-63R63PCS8WDC12V

Warm White; White;              Cool White; Yellow ;

 Red ;              Green;

Blue ;

    RGB		120°Soft resin filled100*10mm
FG-PL178-144R144PCS
    SMD2835		12W178*10mm
FG-PL178-252R252PCS
    SMD2835		18W
FG-PL260-252R252PCS
    SMD2835		18W260*10mm
FG-PL260-333R333PCS
    SMD2835		24W
FG-PL260-441R441PCS
    SMD2835		35W
FG-PL260-630R630PCS
    SMD2835		42W
Square shapeFG-SP100-10W108pcs
    SMD2835		10WDC12VWarm   White; White;              Cool White;   Yellow ;             Red ;              Green ;              Blue ;
    RGB		120°Soft   resin filled100*100*10MM
FG-SP100-12W144PCS
    SMD2835		12W
FG-SP200-35W441PCS
    SMD2835		35WSoft   resin filled200*200*10MM
FG-SP300-72W810PCS
    SMD2835		72WSoft   resin filled300*300*10MM

   Liner Shape		FG-PL30-126S126PCS
    SMD2835		10WDC12V

Warm   White; White;              Cool White;   Yellow;

 Red ;              Green;              Blue ;

    RGB		120°Soft   resin filled300*25*10MM
FG-PL30-126S171PCS     SMD283515W
FG-PL60-252S252PCS
    SMD2835		18W120°Soft   resin filled600*25*10MM
FG-PL60-333S333PCS
    SMD2835		24W
FG-PL100-441S441PCS
    SMD2835		35W120°Soft   resin filled1000*25*10MM
FG-PL100-558S558PCS
    SMD2835		40W

Remarks：1. RGB Mode: External Control only

               2. Normal length of the wire: 2meter

               3. SMD 3014 optional

               4. Installation Method: Wall mounted
