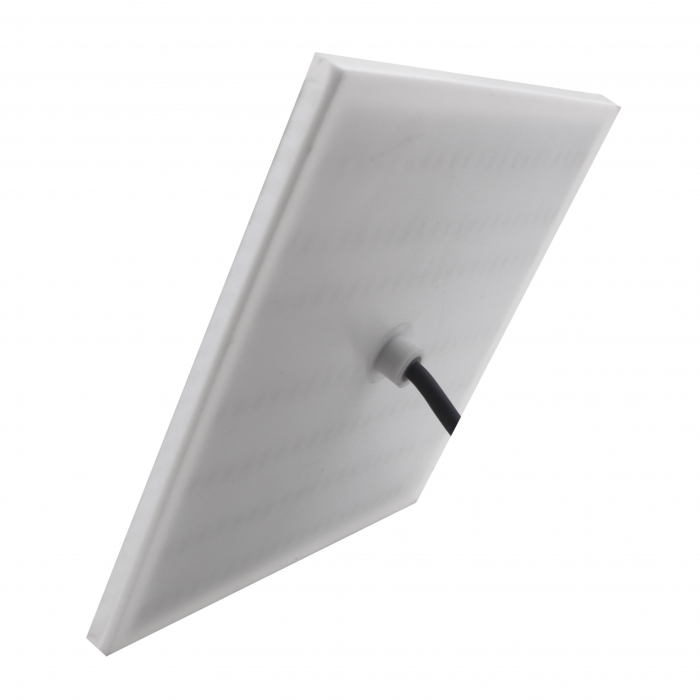

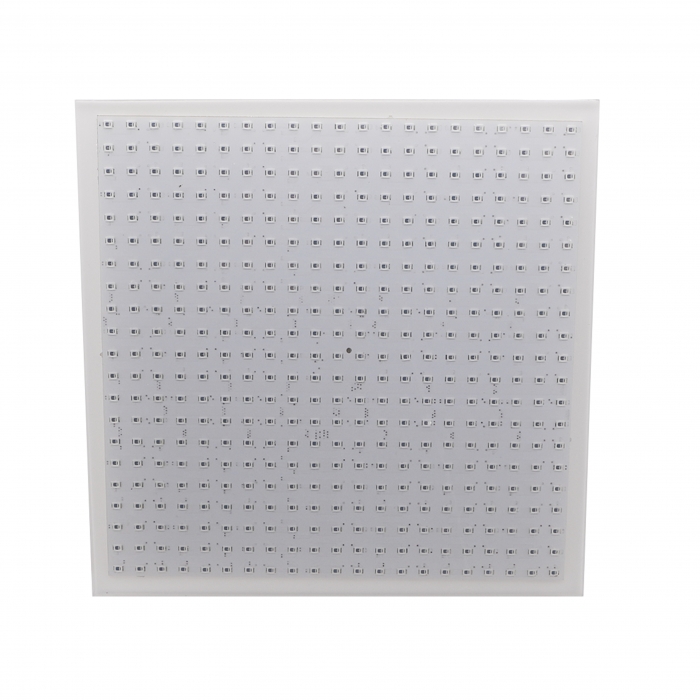

Square shape 200x200mm 35W soft flexible Ultra thin 10mm Resin Filled LED Pool Light

  • Square shape 200x200mm 35W soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Name:Square shape 200x200mm 35W soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Model No.:FG-SP200-35W

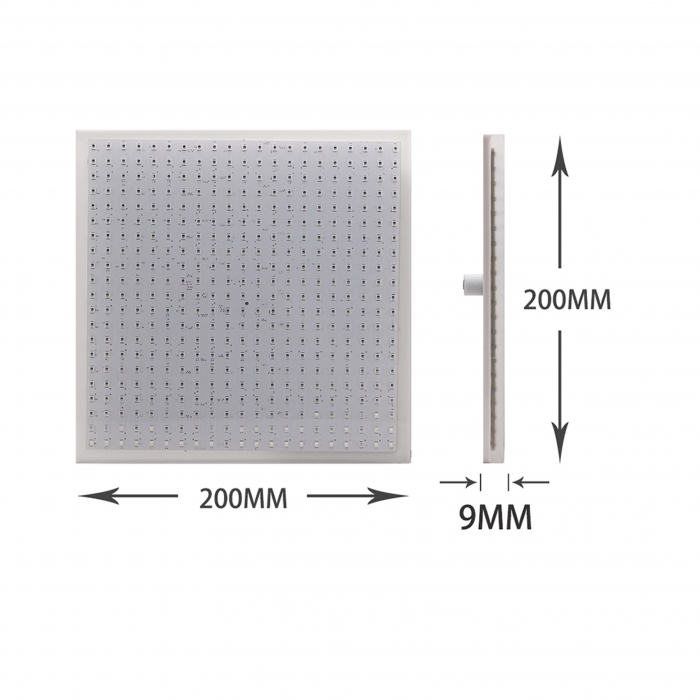

Size:200x200x10mm
Voltage:DC12V
Material:Soft resin filled

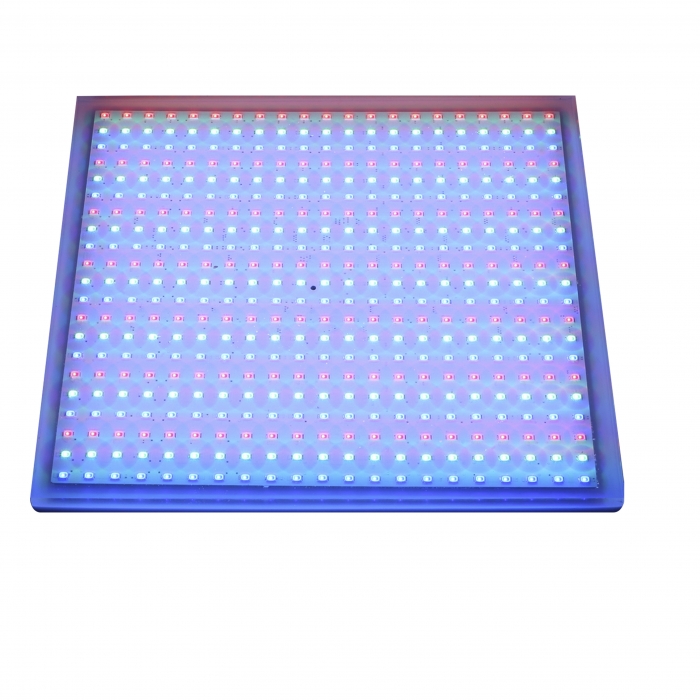

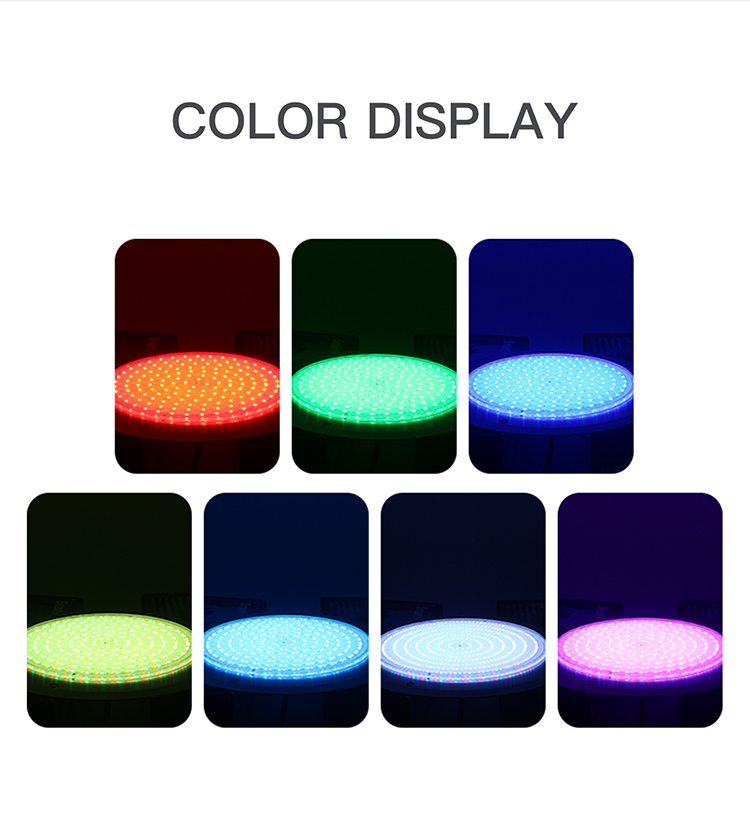

LED Col:RGB,Red, Yellow, Blue, Green, Cool white, Warm white
LED qty:441pcs
LED power:35W
LED Brand:Epistar
Beam angle:120degree
Regular cable length:2meters
Waterproof Grade:IP68
RGB control DC12V:WiFI Control, External Control, DMX512 Control

Product Description






ModelProduct
    Code
LED Qty             (PCS)Input
    Power
Input
    Voltage
Emitting ColorBeam
    angle
MaterialDimension    (MM)
Round shapeFG-PL100-63R63PCS8WDC12V

Warm White; White;              Cool White; Yellow ;

 Red ;              Green;

Blue ;

    RGB
120°Soft resin filled100*10mm
FG-PL178-144R144PCS
    SMD2835
12W178*10mm
FG-PL178-252R252PCS
    SMD2835
18W
FG-PL260-252R252PCS
    SMD2835
18W260*10mm
FG-PL260-333R333PCS
    SMD2835
24W
FG-PL260-441R441PCS
    SMD2835
35W
FG-PL260-630R630PCS
    SMD2835
42W
Square shapeFG-SP100-10W108pcs
    SMD2835
10WDC12VWarm   White; White;              Cool White;   Yellow ;             Red ;              Green ;              Blue ;
    RGB
120°Soft   resin filled100*100*10MM
FG-SP100-12W144PCS
    SMD2835
12W
FG-SP200-35W441PCS
    SMD2835
35WSoft   resin filled200*200*10MM
FG-SP300-72W810PCS
    SMD2835
72WSoft   resin filled300*300*10MM

  Liner Shape
FG-PL30-126S126PCS
    SMD2835
10WDC12V

Warm   White; White;              Cool White;   Yellow;

 Red ;              Green;              Blue ;

    RGB
120°Soft   resin filled300*25*10MM
FG-PL30-126S171PCS     SMD283515W
FG-PL60-252S252PCS
    SMD2835
18W120°Soft   resin filled600*25*10MM
FG-PL60-333S333PCS
    SMD2835
24W
FG-PL100-441S441PCS
    SMD2835
35W120°Soft   resin filled1000*25*10MM
FG-PL100-558S558PCS
    SMD2835
40W

Remarks:1. RGB Mode: External Control only

               2. Normal length of the wire: 2meter

               3. SMD 3014 optional

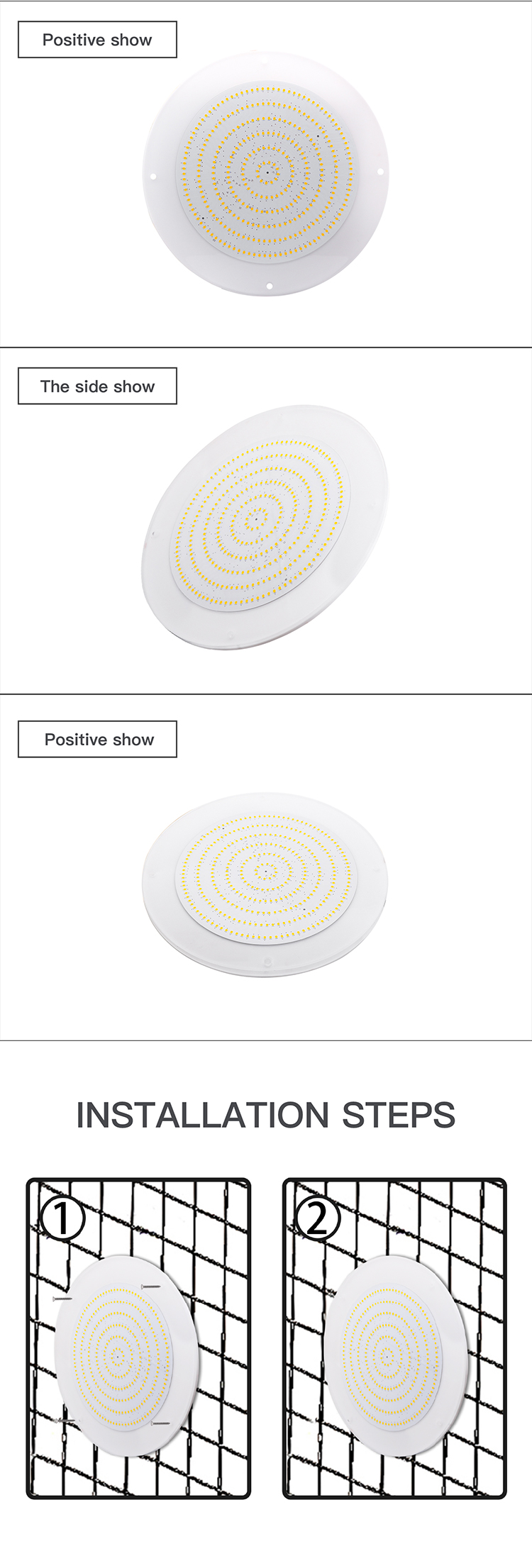

               4. Installation Method: Wall mounted

图层 7.jpg

图层 4.jpg

图层 8.jpg图层 9.jpg

图层 5.jpg图层 6.jpg
